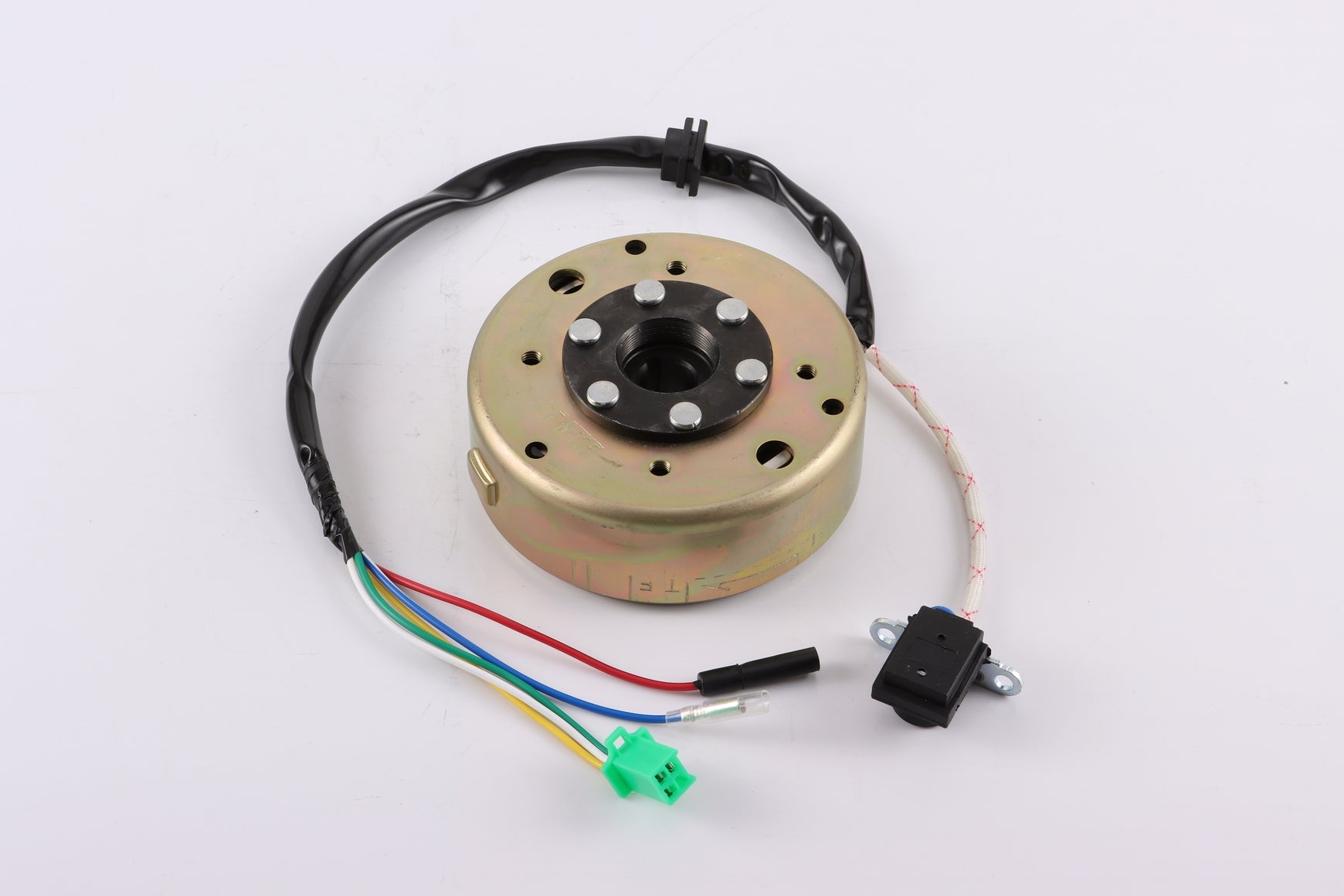

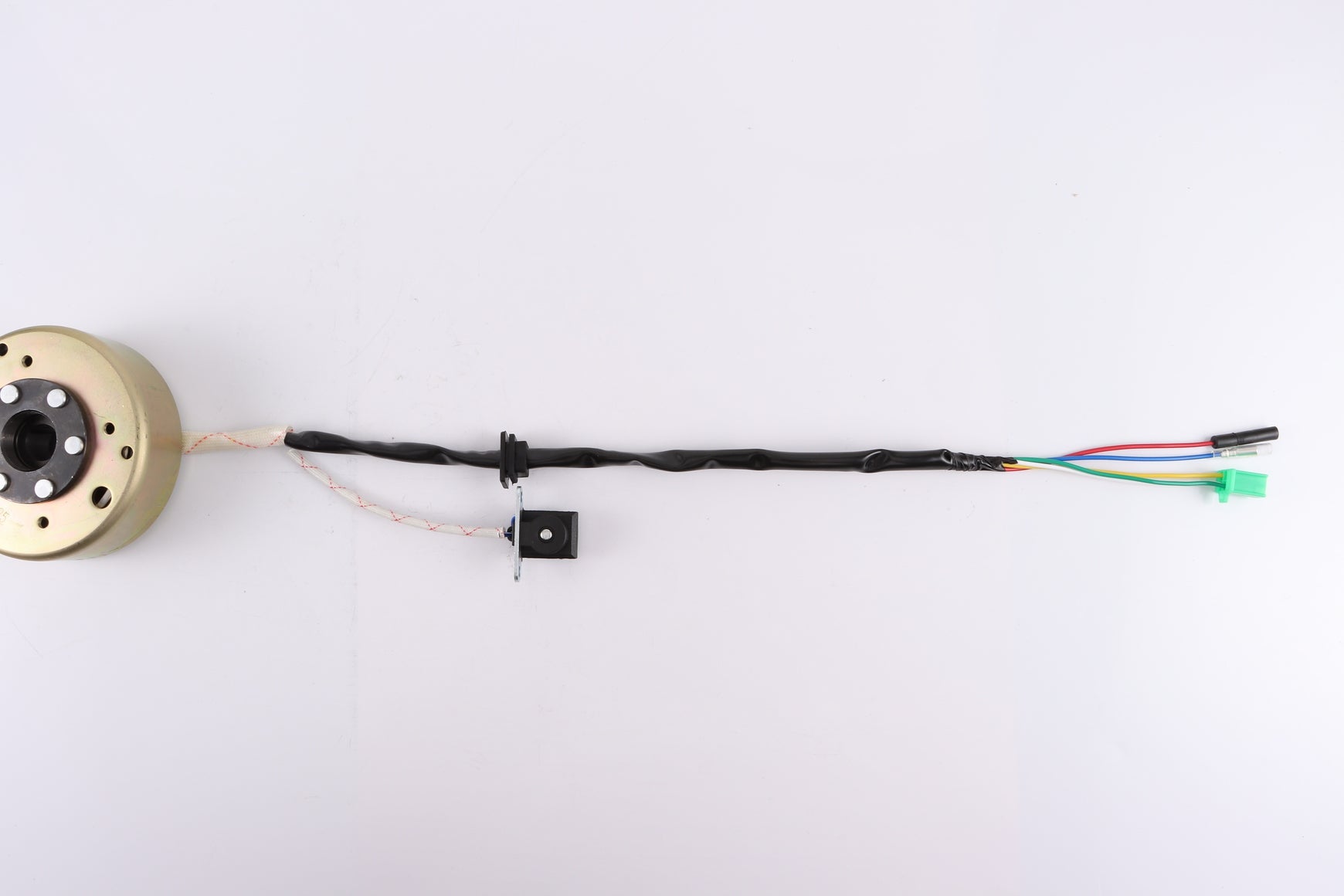

This 8-pole magneto stator and flywheel set is designed as a replacement electrical charging component for small horizontal engines in the 125cc–150cc range. It follows standard aftermarket dimensions and is used to restore charging and ignition performance when the original stator or flywheel becomes worn or damaged.
2. Features

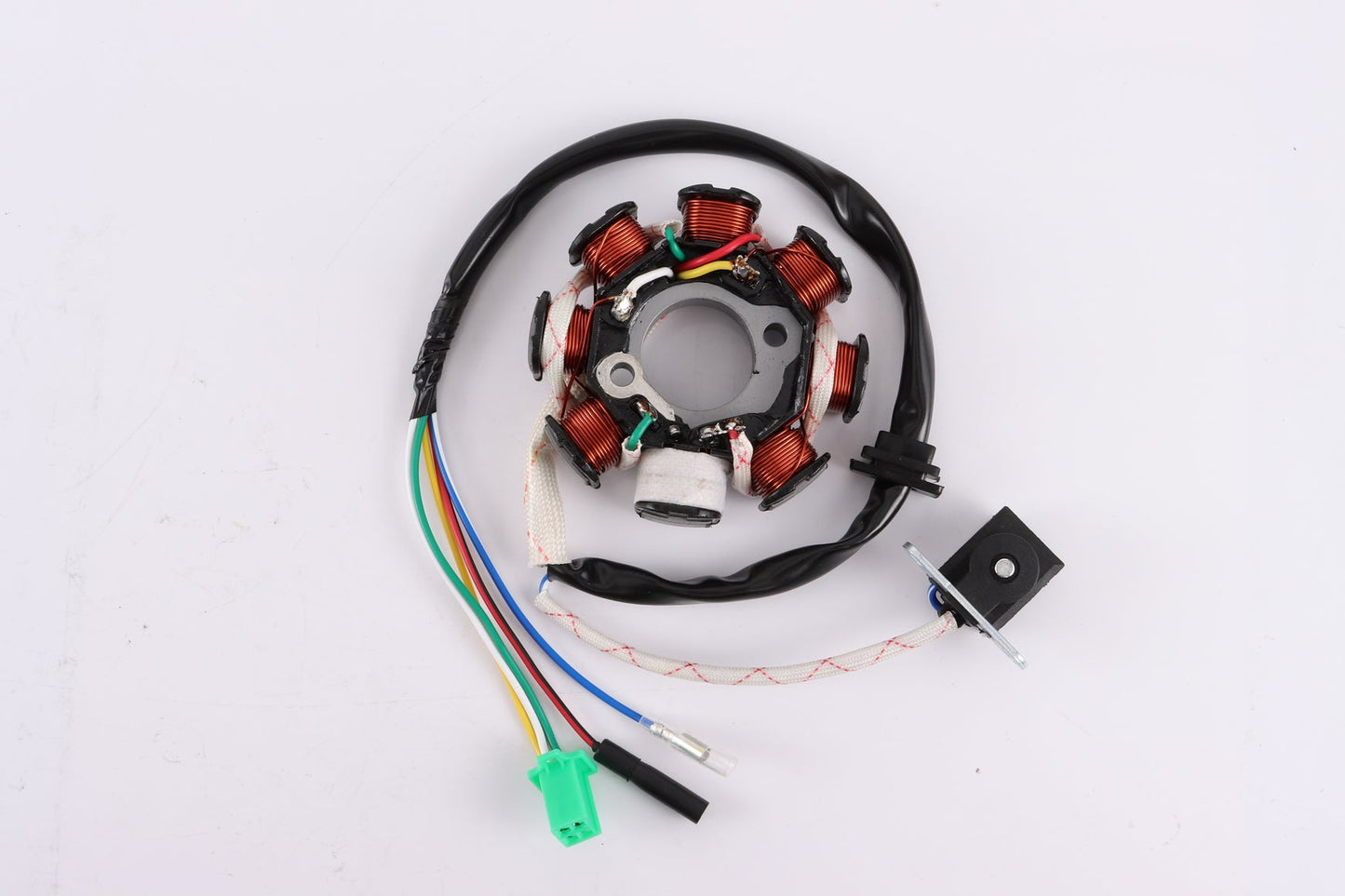

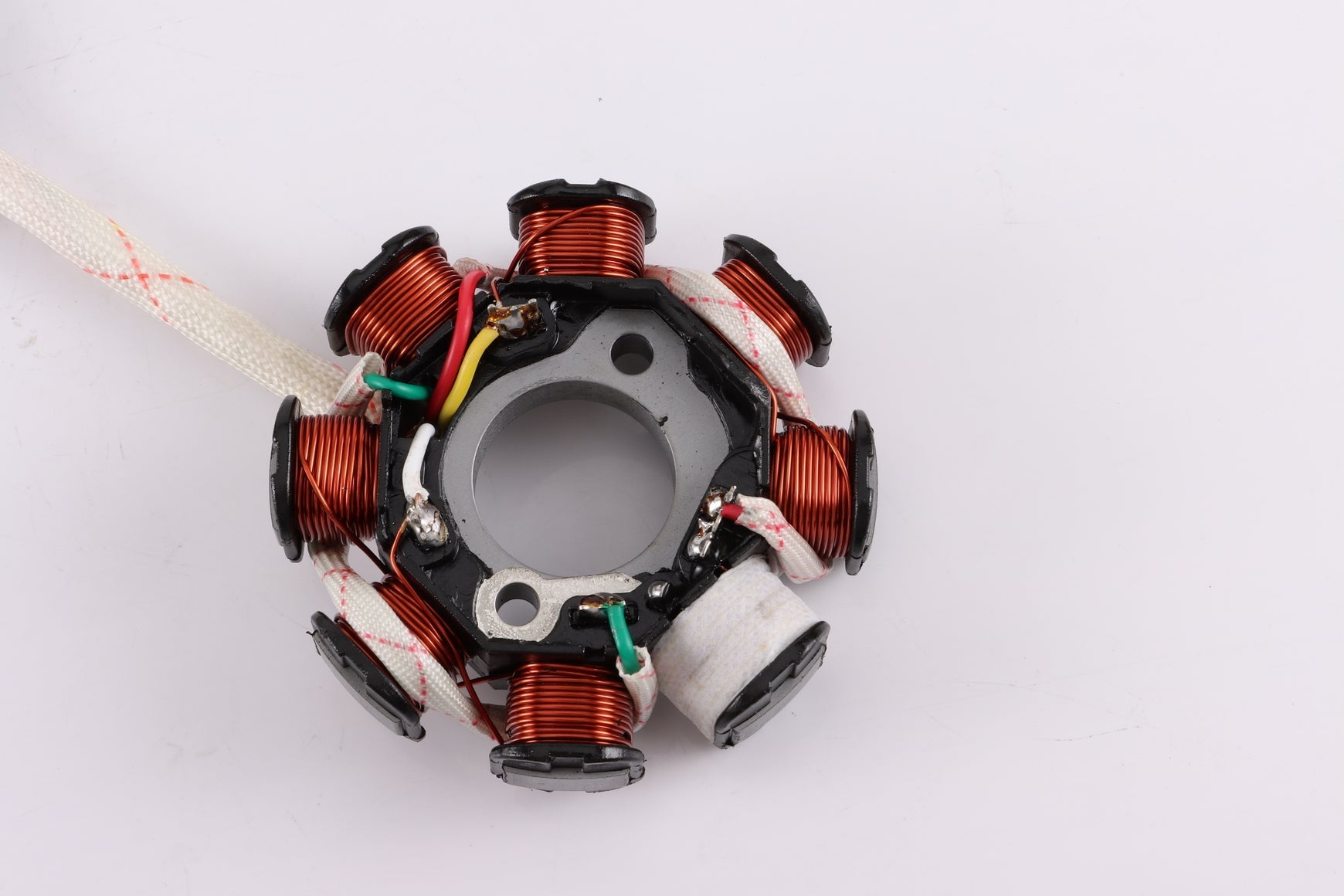

8-pole stator with pre-installed coils and wiring

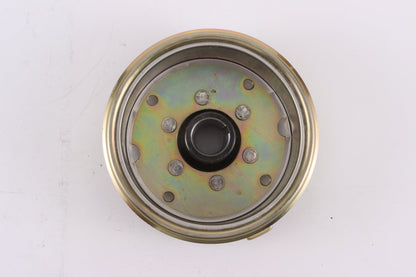

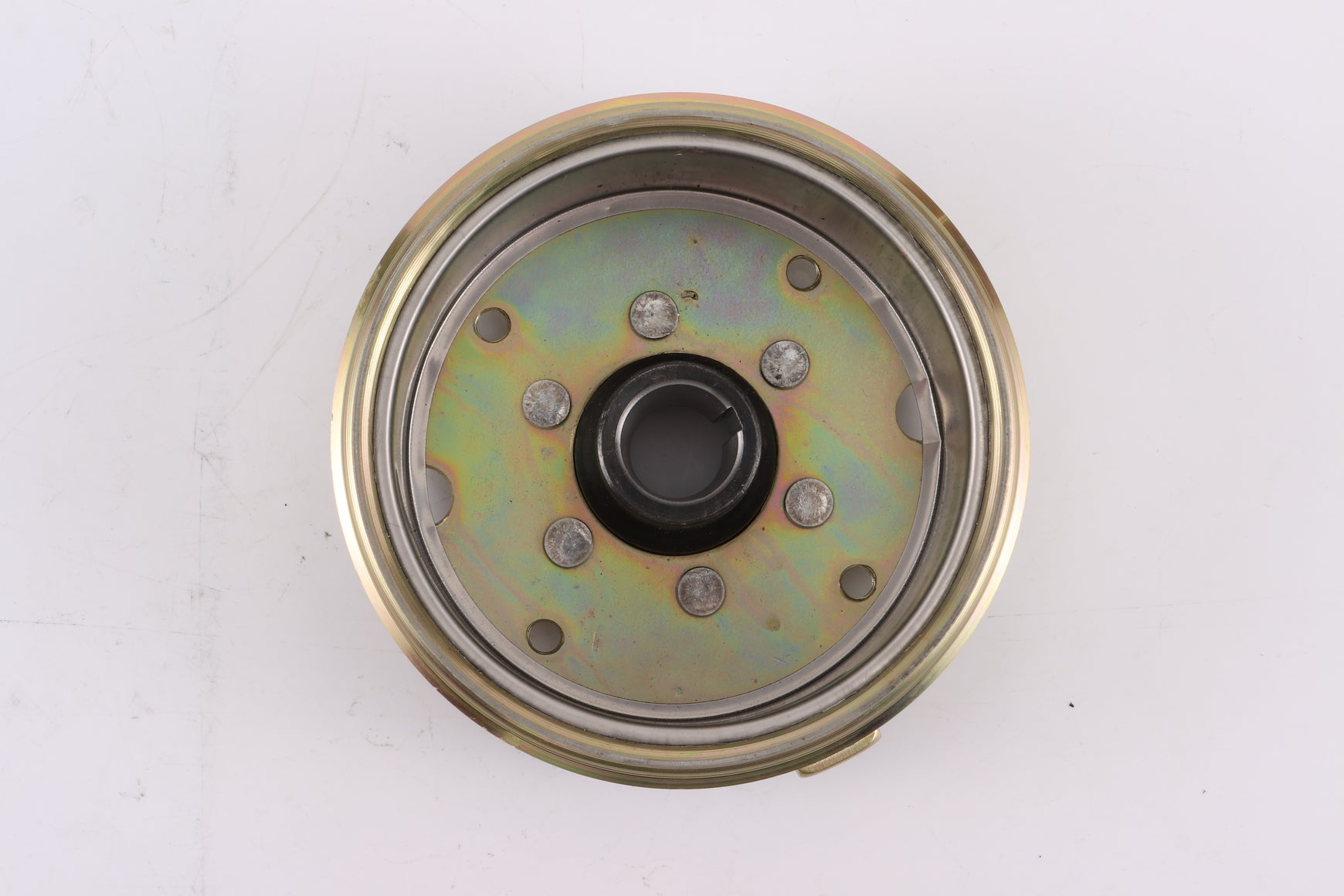

Matching flywheel with tapered centre bore
OEM-style layout for simple installation
Suitable for restoring charging output and ignition performance
Durable construction for small 4-stroke engines
3. Specifications

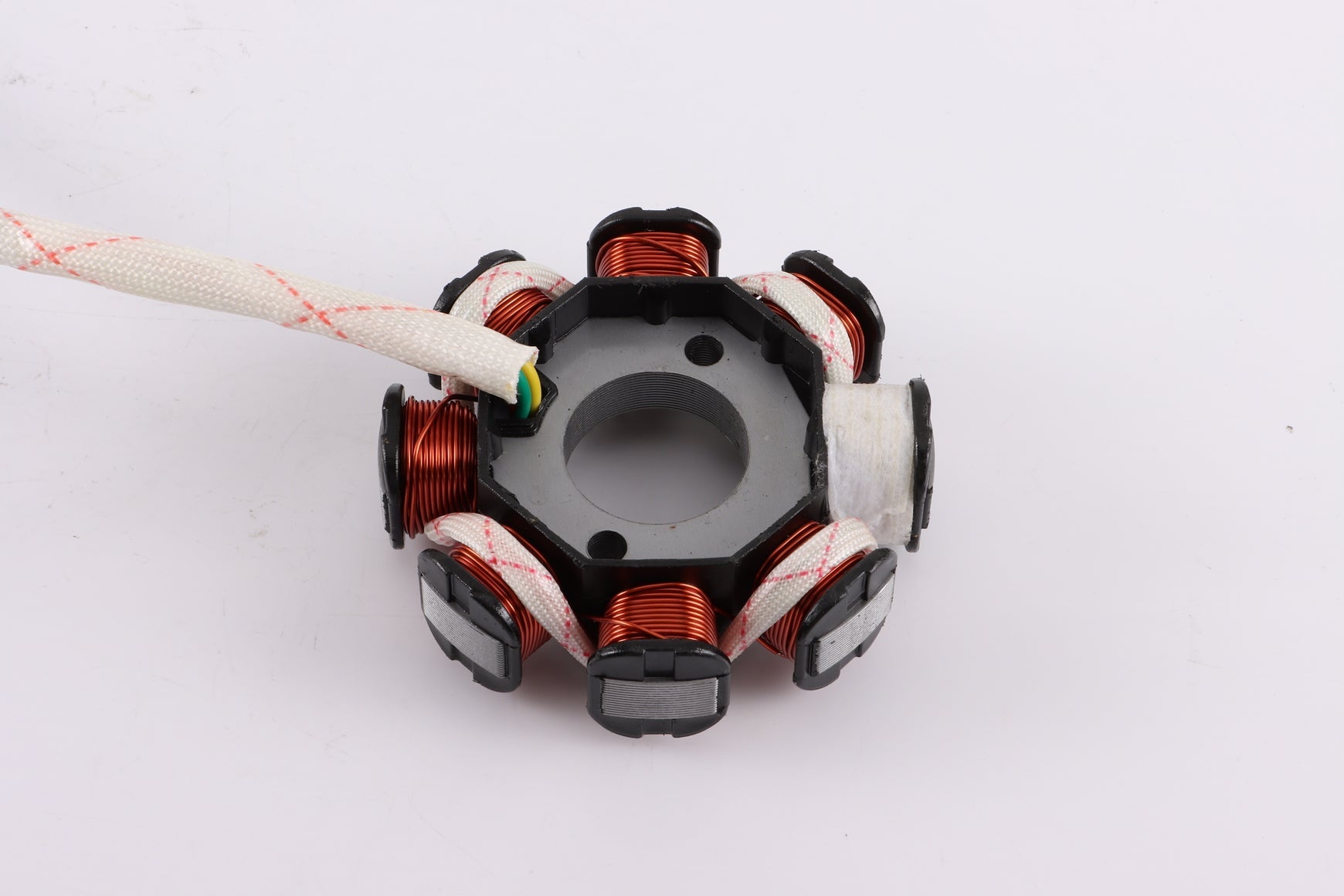

Stator:
Overall Diameter: approx. 88 mm
Mount Hole Spacing: approx. 40 mm (centre to centre)

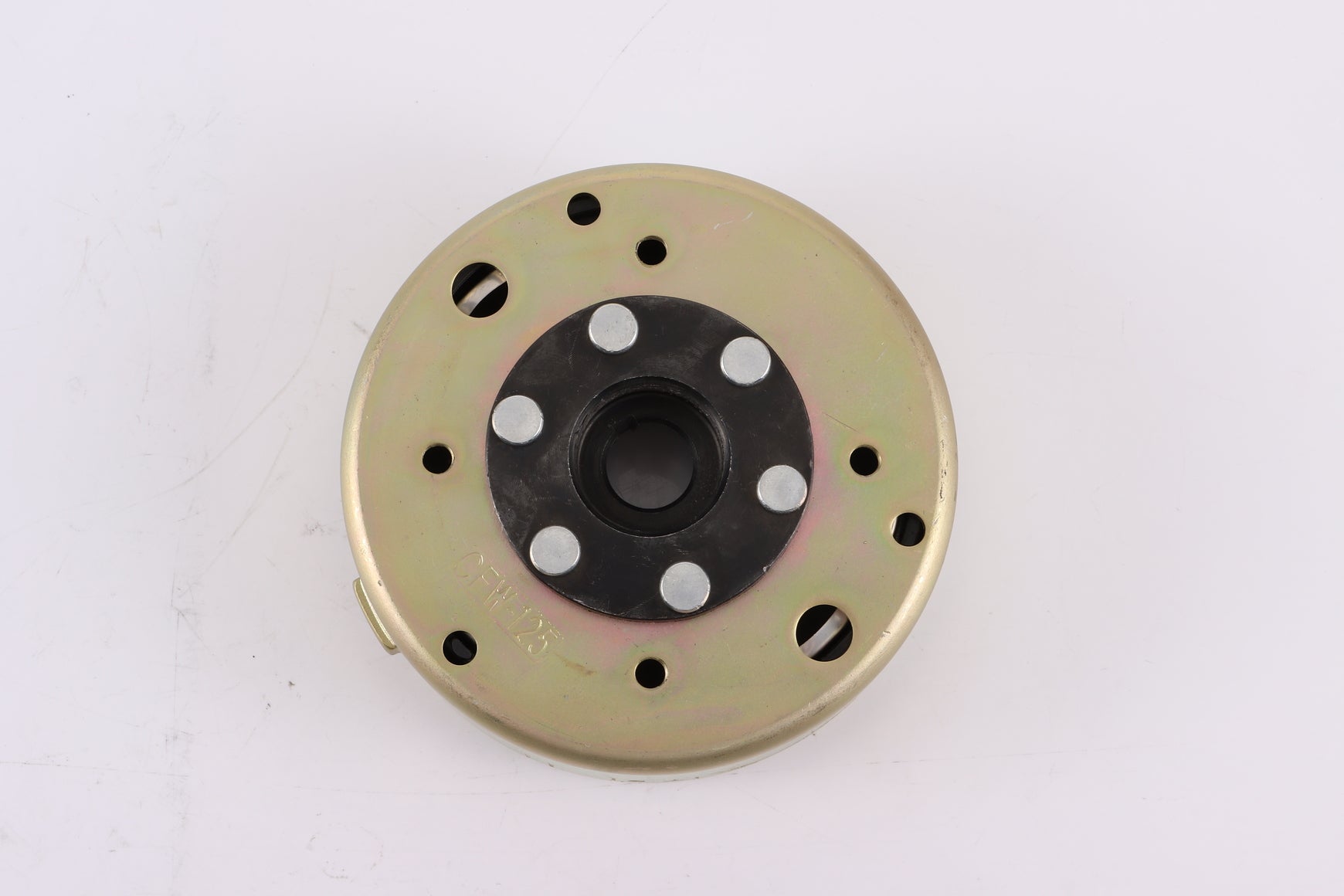

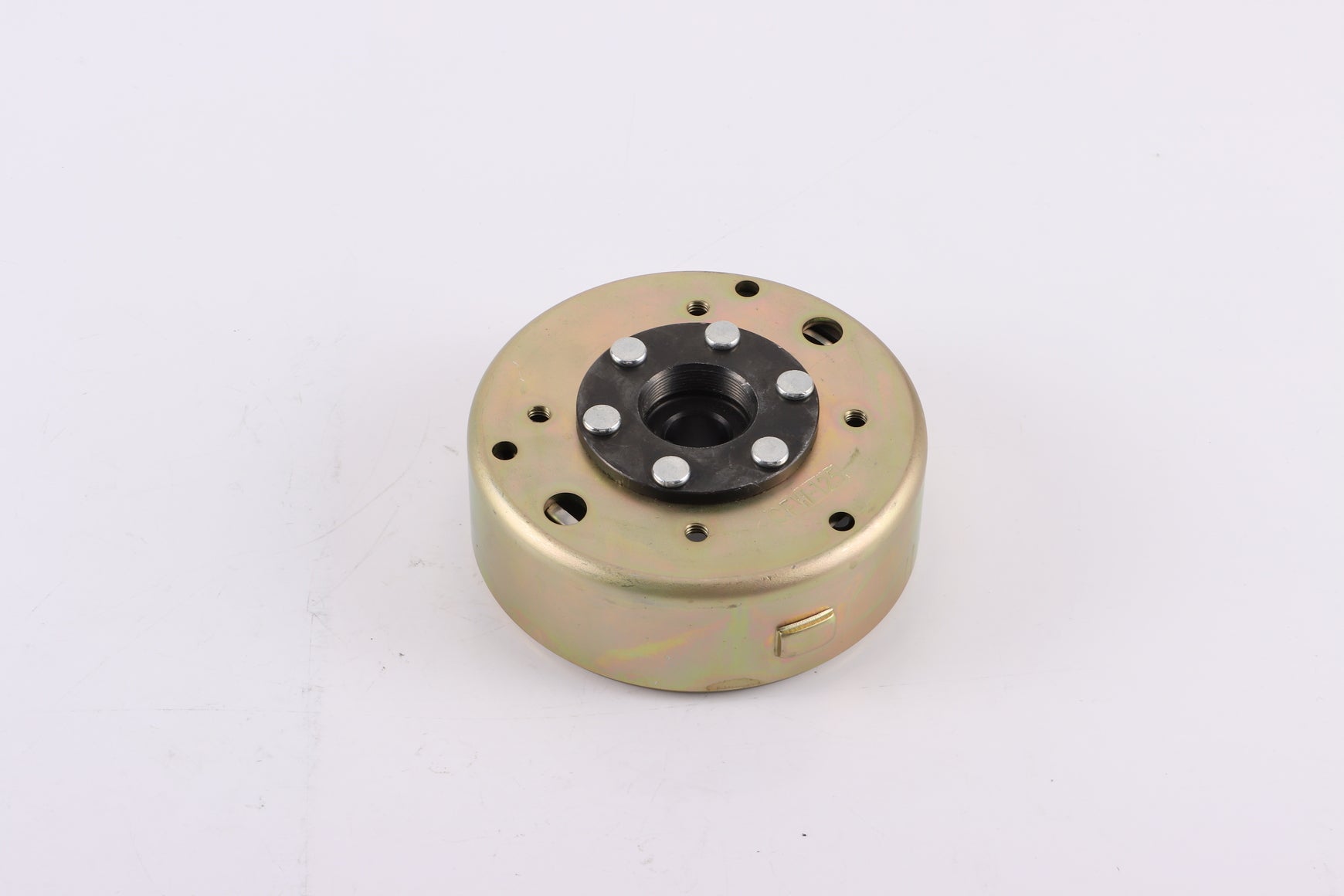

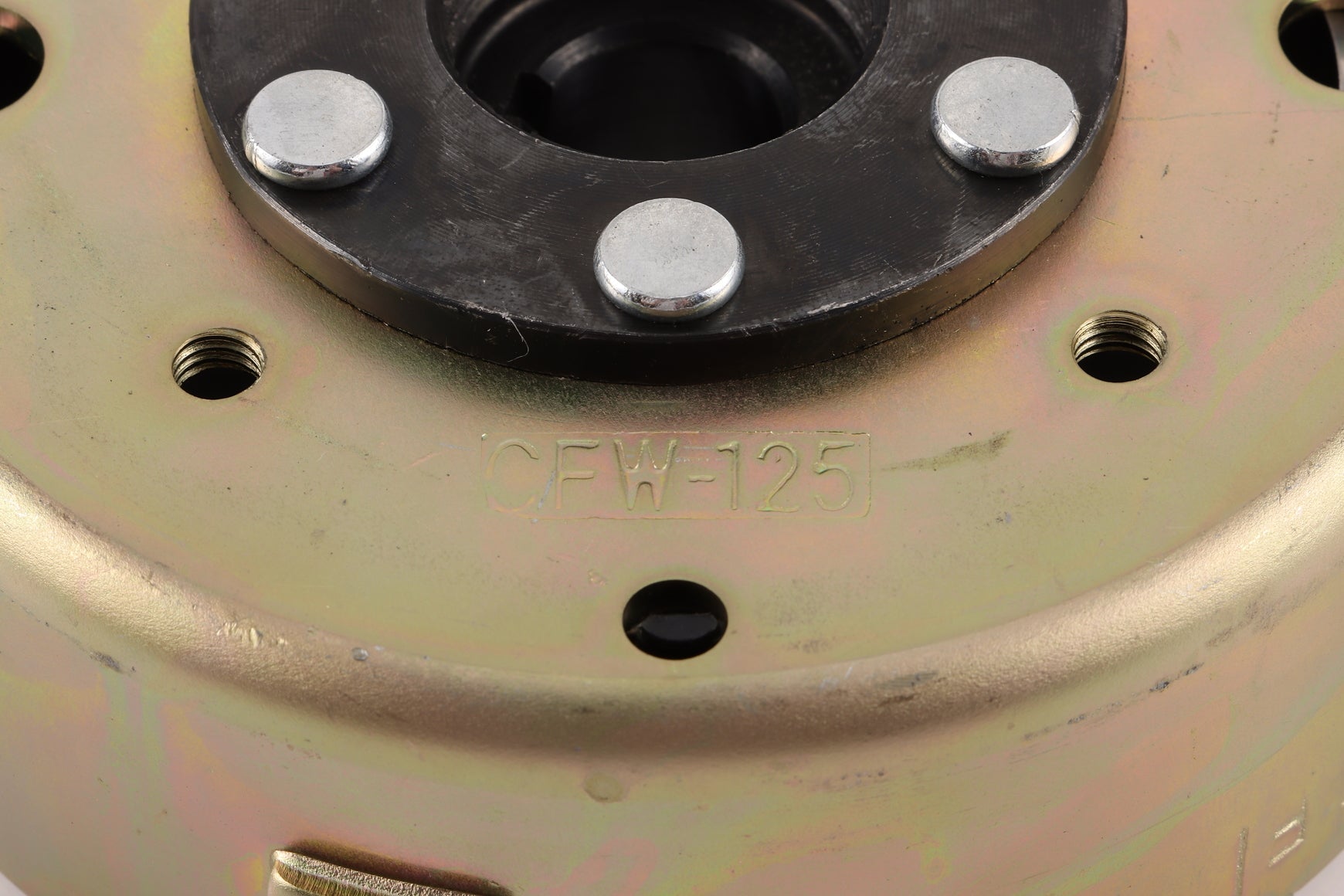

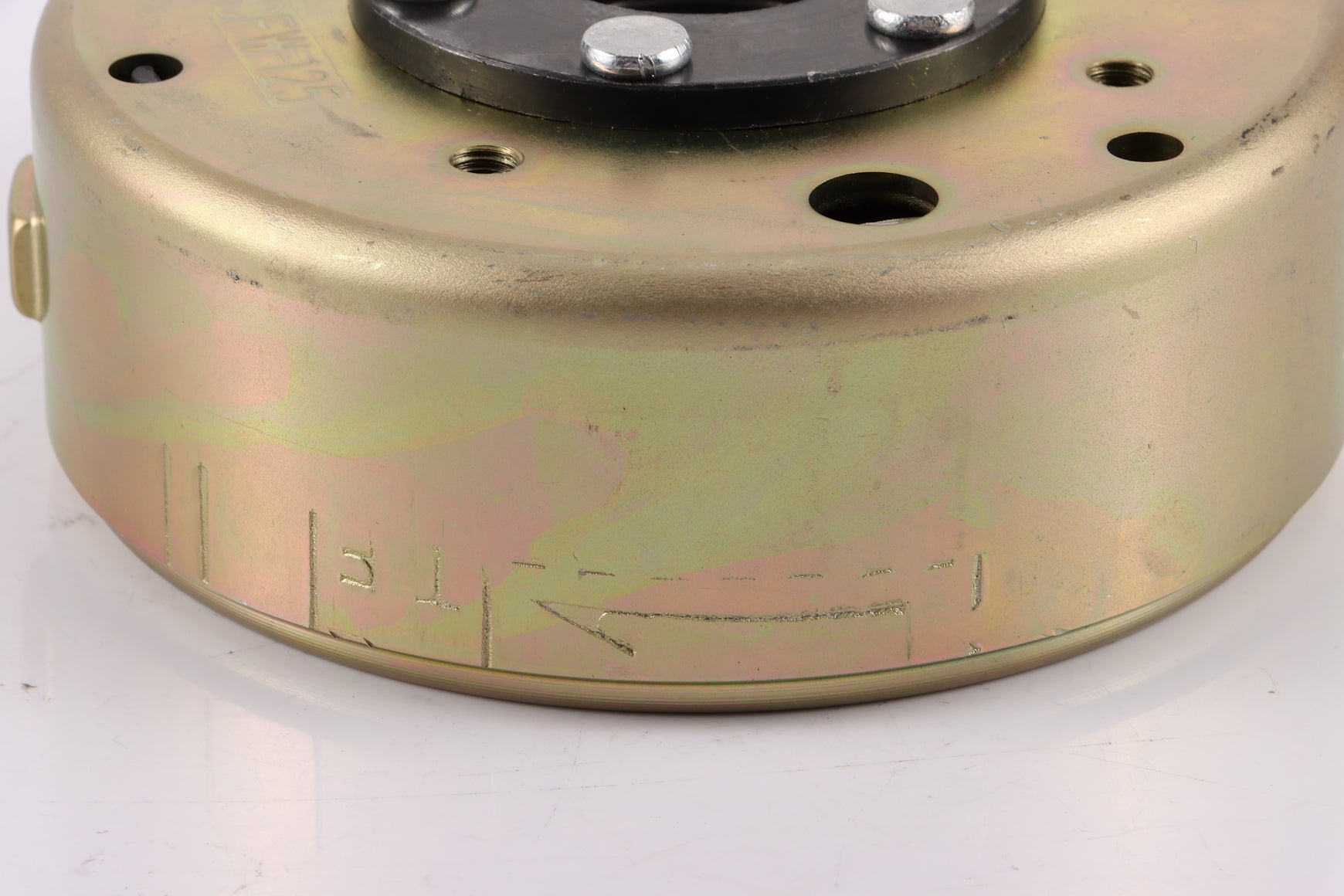

Flywheel:
Outer / Inner Diameter: approx. 110 mm / 90 mm
Tapered Centre Hole: approx. 14.8–18.5 mm
Thickness: approx. 40.5 mm
(Measurements are approximate.)
4. Compatibility
This replacement stator & flywheel set is compatible with many 4-stroke horizontal small engines in the 125cc–150cc range, including:
GY6 125cc engines
GY6 150cc engines
Various pit bikes, quad bikes, ATVs, and small buggies using GY6-style electrical systems

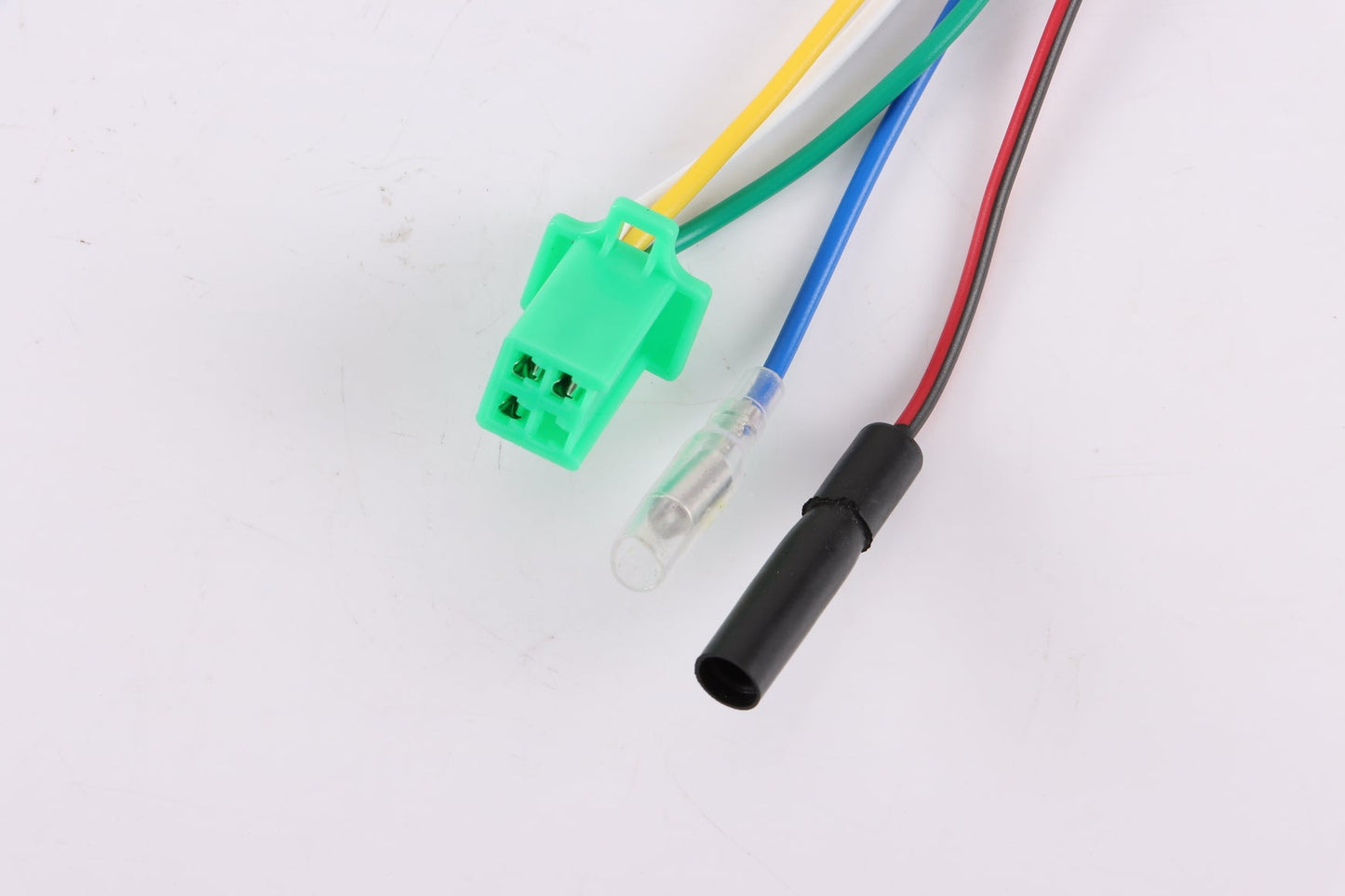

Fitment may vary. Please compare mounting hole spacing, connector style, and flywheel dimensions with your existing parts before purchasing.
5. Package Includes

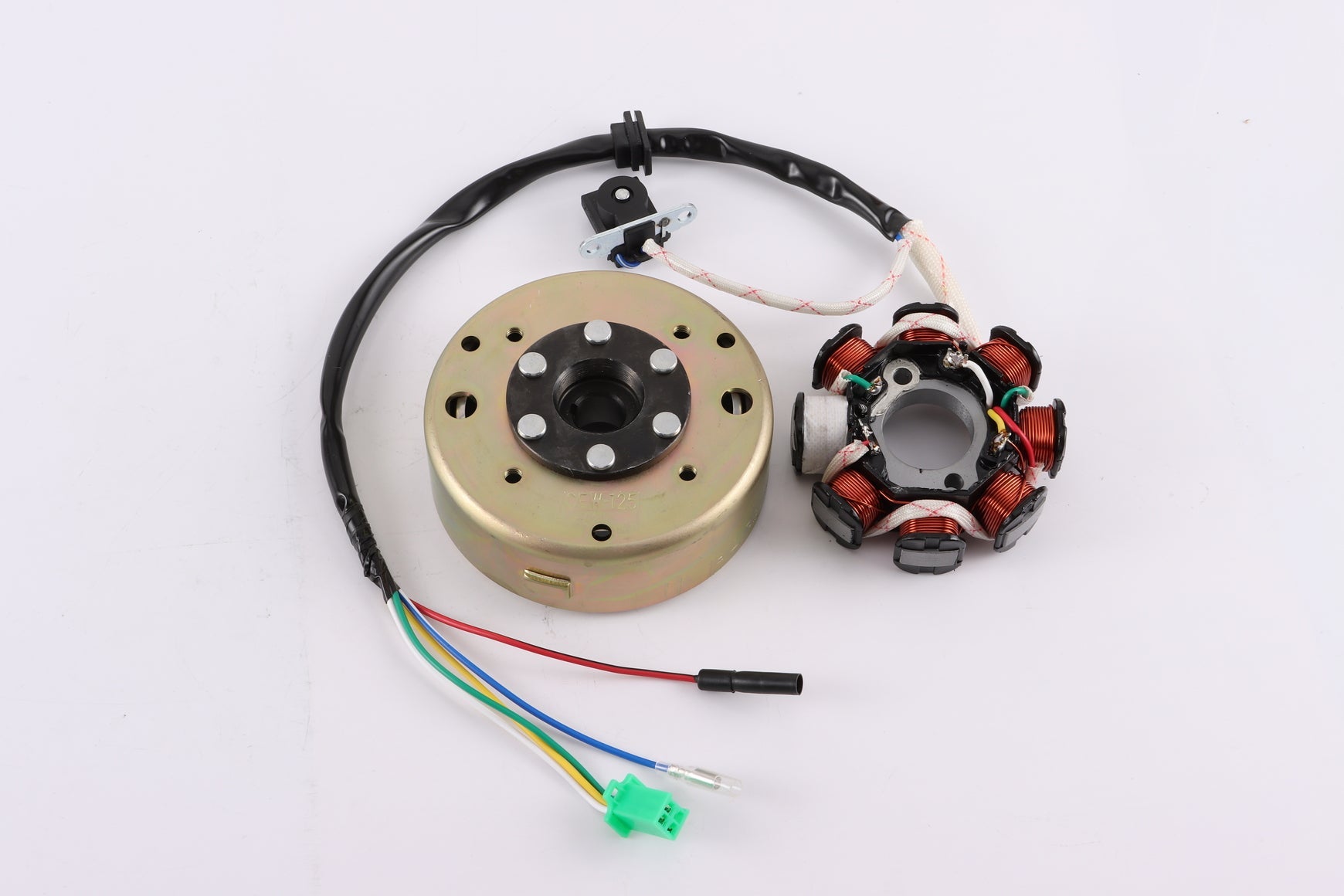

1 × 8-Pole Magneto Stator
1 × Magneto Flywheel
(Items included exactly as shown in the product images.)
