Product Description

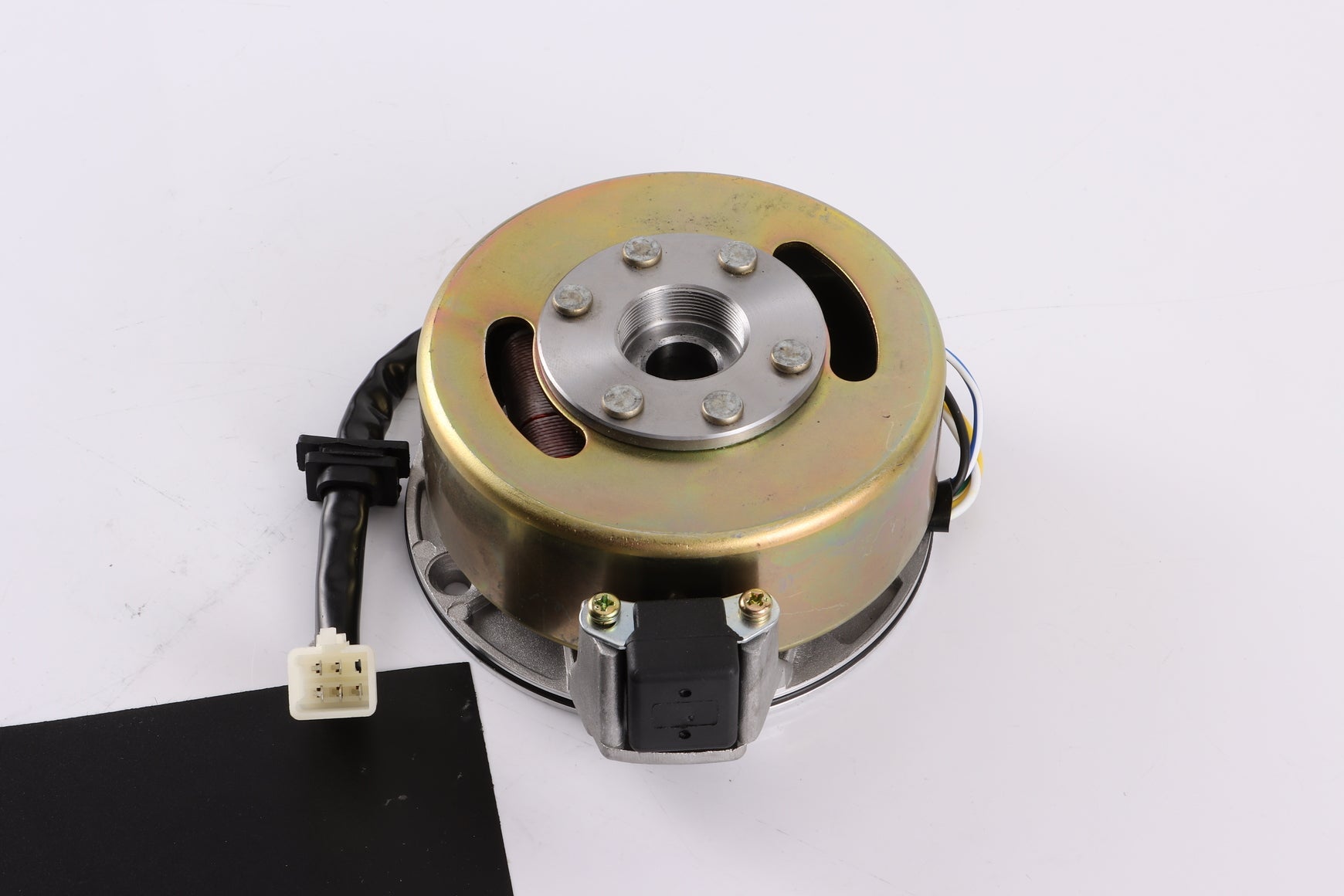

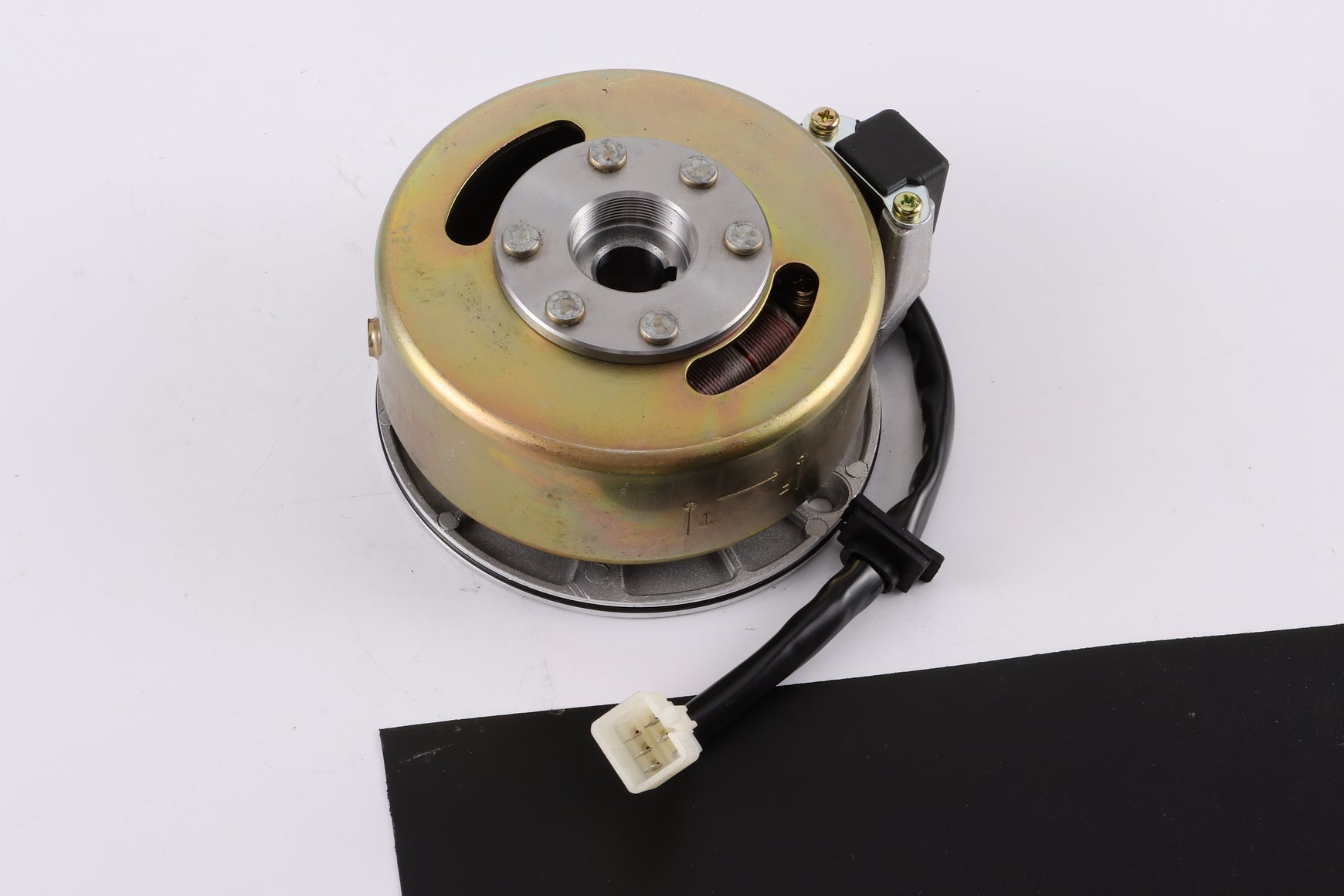

This magneto stator and flywheel set is designed for 110cc and 125cc kick start engines commonly used in pit bikes, trail bikes and dirt bikes. It replaces worn or faulty ignition components to restore consistent spark timing and reliable engine starting performance. The set includes a stator plate and matching tapered flywheel for a complete ignition system replacement.
Features
• Replacement magneto stator and flywheel set for 110cc–125cc off-road engines

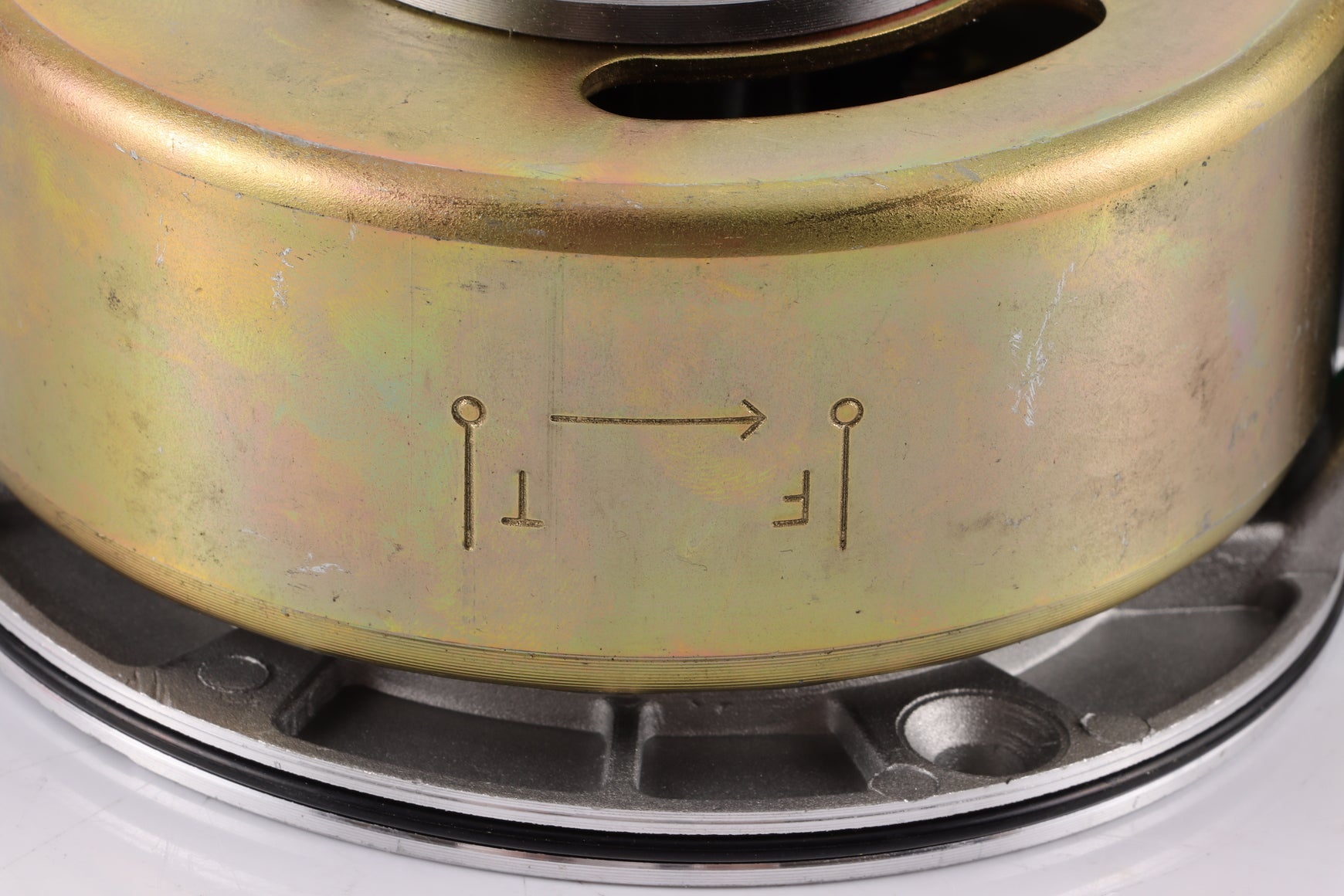

• Restores ignition performance and stable spark timing
• Direct-fit design suitable for kick start pit bikes and trail bikes
• Durable copper windings and strong magnetic rotor construction
• Ideal for repairing damaged stators or failed flywheels
Specifications

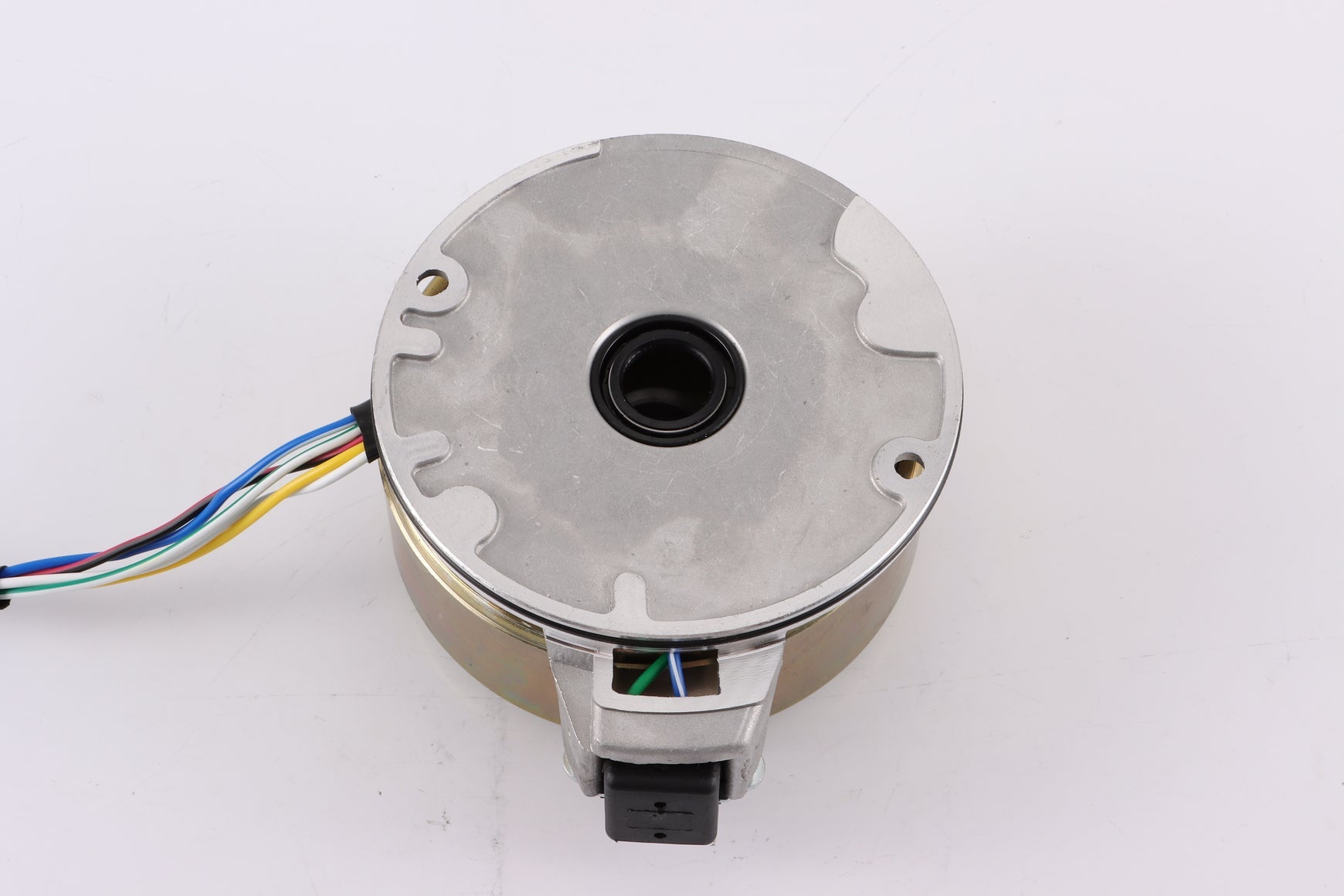

Stator Plate

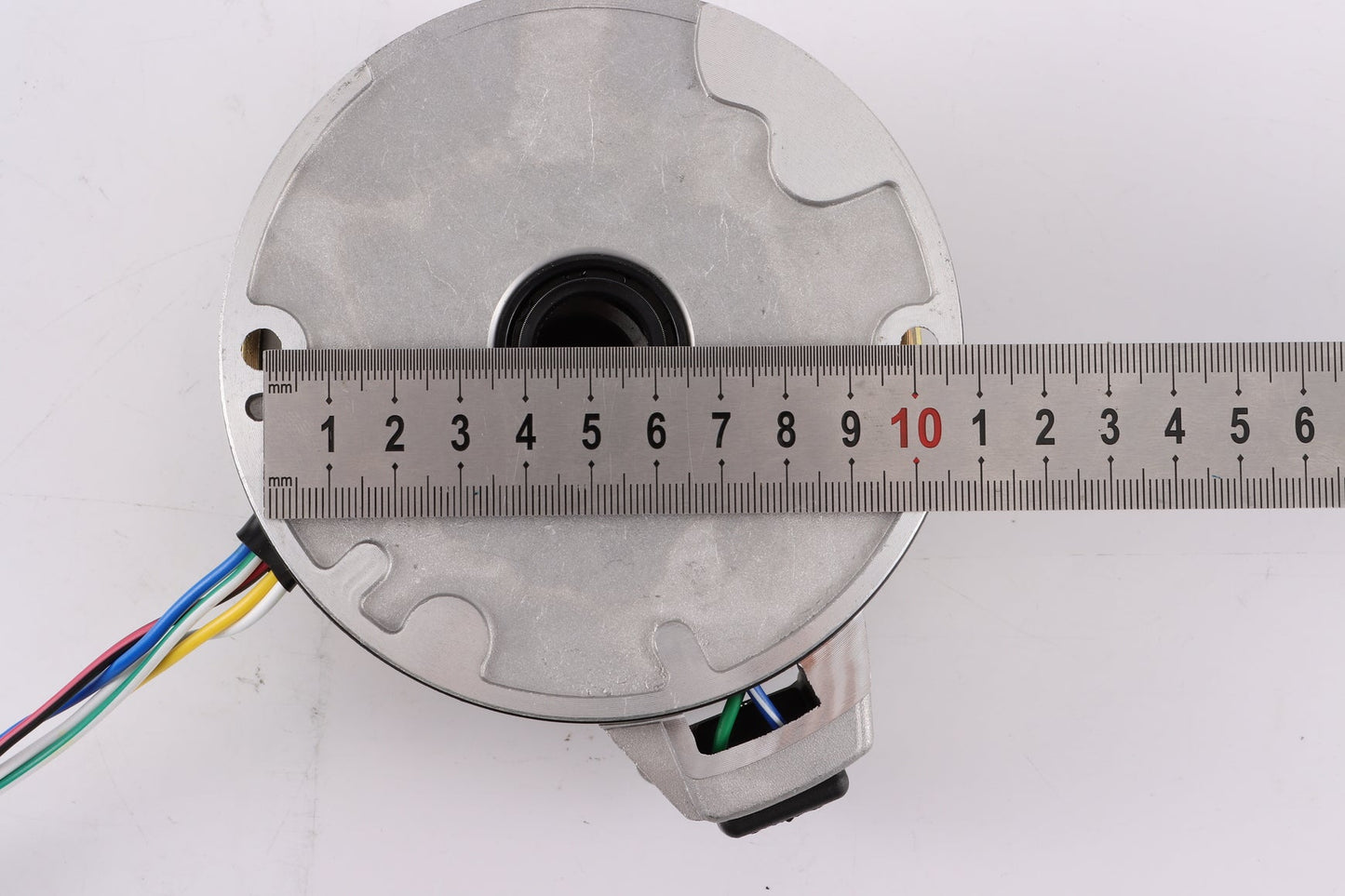

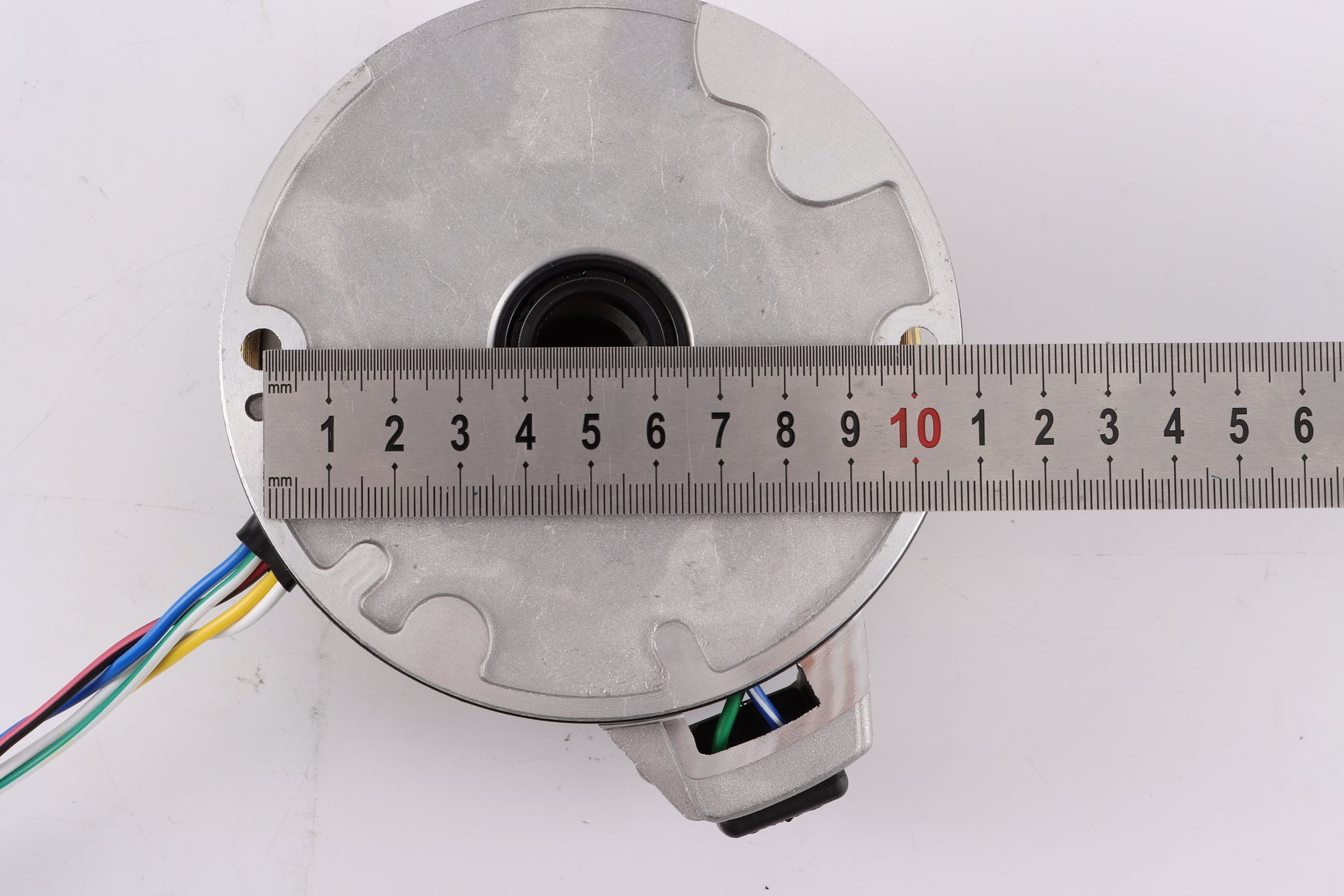

• Back plate diameter: approx. 115 mm
• Centre hole diameter (outside of oil seal): approx. 30 mm
• Coil diameter: approx. 84 mm
• Mounting hole spacing (centre to centre): approx. 102 mm

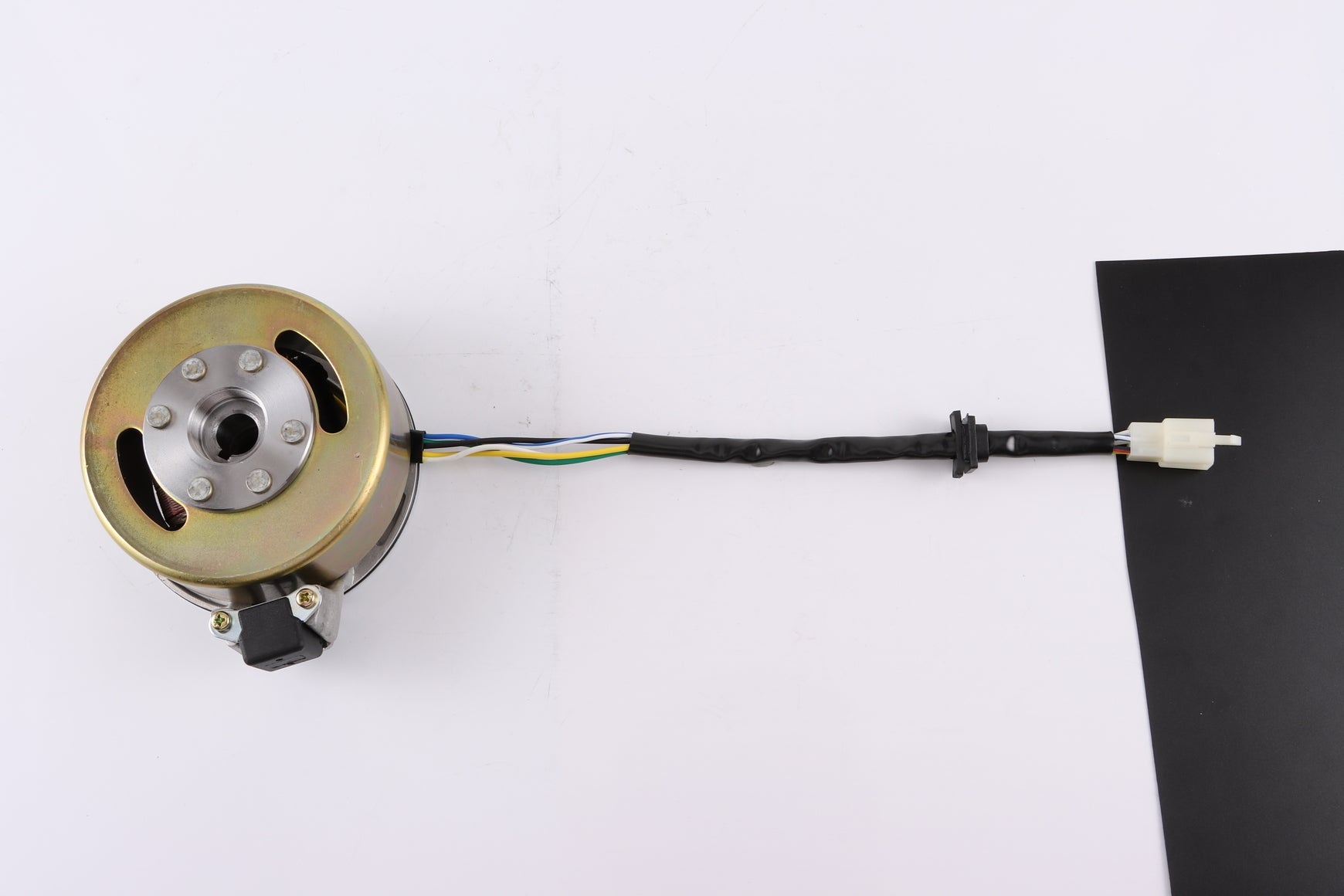

Flywheel
• Outer diameter / inner diameter: approx. 111 mm / 88 mm
• Tapered centre hole: approx. 15 mm → 19 mm
• Flywheel thickness: approx. 44 mm
Compatibility
Compatible with many 110cc and 125cc kick start engines used in pit bikes, dirt bikes and trail bikes from brands such as Pit Pro, Thumpstar, Atomik, DHZ, Kayo, Apollo and other similar models using a matching stator and tapered flywheel system. Fitment may vary; please compare measurements and taper size with your original components before purchasing.

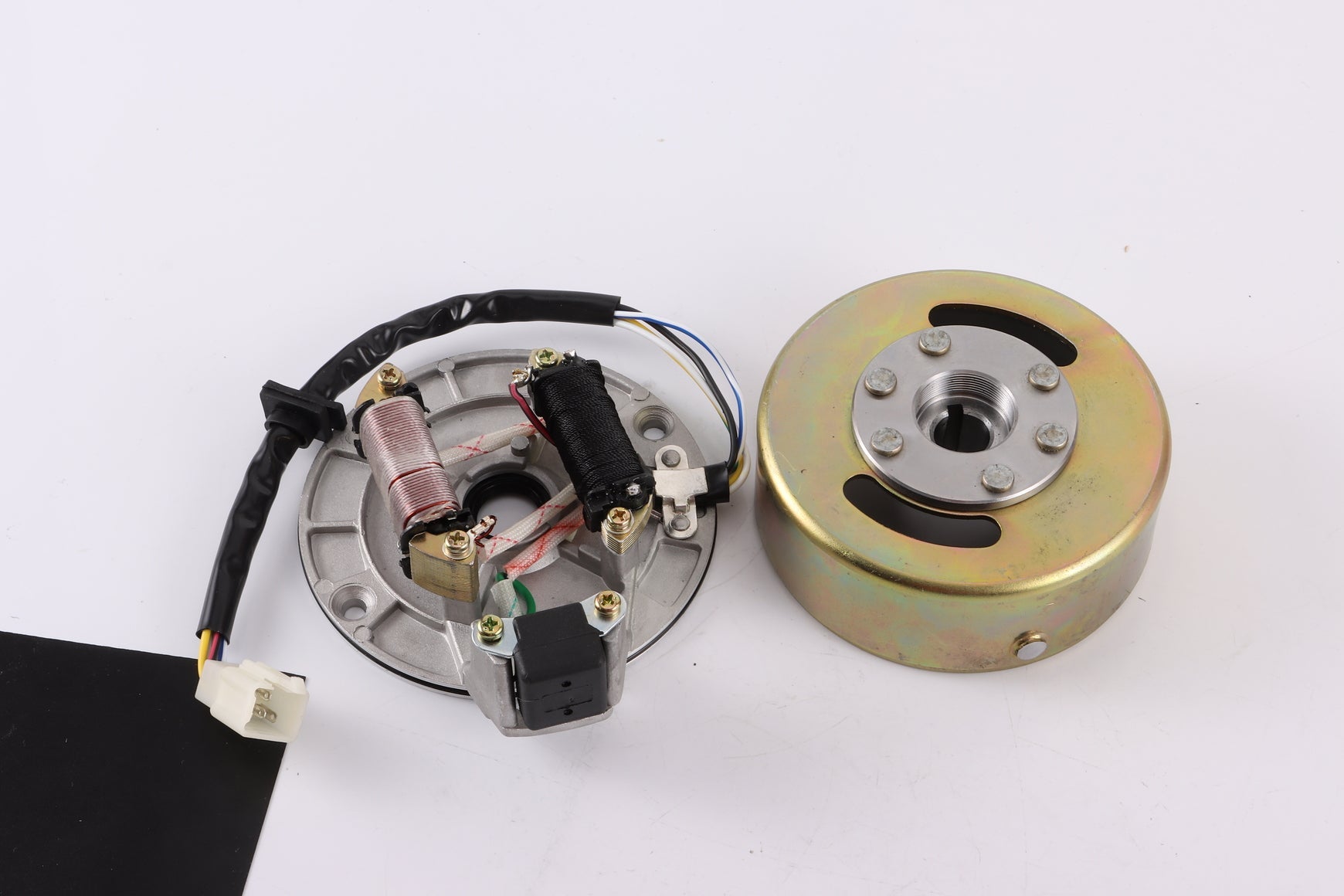

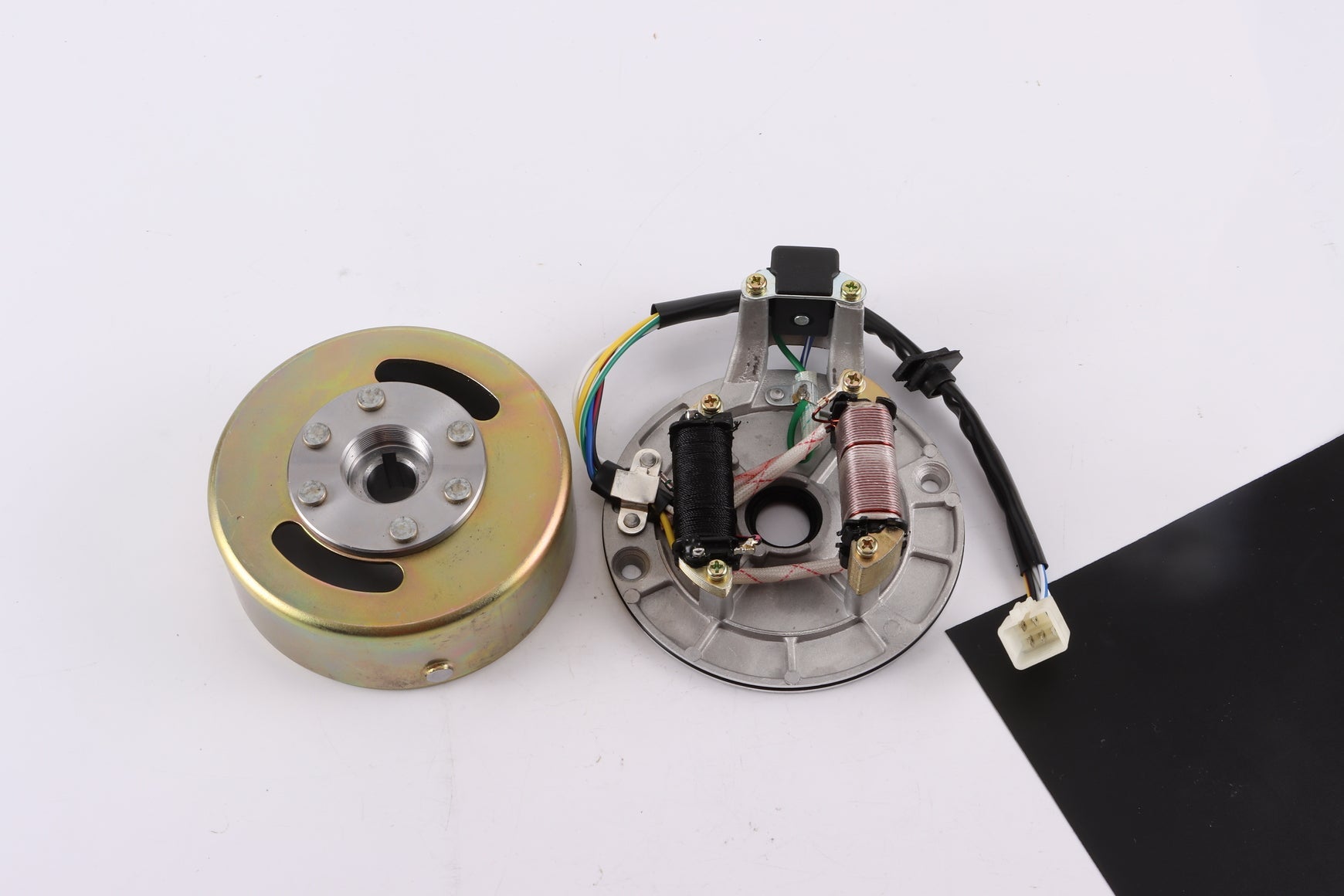

Package Includes
• 1 × Magneto stator plate
• 1 × Magneto flywheel
Shipping
Shipped from Melbourne, Australia.
Next-business-day dispatch for stocked items.
